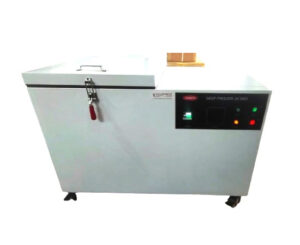

Deep Freezer upto 80 Deg C Manufacturer in India
HAMCO Make Deep freezer is exceptionally efficient, reliable and durable. It ensures safe and dependable sample storage and is ideal for longer term storage of materials at a low temperature range.
Application ranges, storage and preservation of valuable biological products, enzymes, virus, serum, blood plasma, heat sensitive vaccines, insulin, lever extract, medicines
- Temperature range : -20 /-40/-80 degree C.
- Temp. controller : Microprocessor based PID control with auto tune facility.
- Temperature sensor : RTD Pt 100.
- Temperature display : Digital LED 3 ½ digit.
- Chamber illumination : Floroscent Light with door switch.
- Cooling : CFC free compressor utilising R 404 eco friendly refrigerant , with condenser , motor and relay .(upto -20 degree c)
- Cooling : Cascade control with CFC free compressor utilising R 23 eco friendly refrigerant , with condenser , motor and relay .(upto -40 degree c)
- Cooling : Cascade control with CFC free compressor utilising Suva 95 eco friendly refrigerant , with condenser , motor and relay .(upto -80 degree c)
- Feet : Castor wheels.
- Trays : SS wire mesh , Heavy duty.
- Construction : Double walled with poly urathene ( PUF) insulation provided with outer full length glass viewing door with locking arrangement.
- Double walled , gap between walls filled with PUF Insulation.
- Standard Model : Stainless steel Mirror polished chamber and heavy guage Powder- coated CRC exterior.
- GMP Model : Stainless steel Mirror polished chamber and exterior of dull finish stainless steel.
- 3” Thick CFC Free Puff Insulation.
- Stainless steel Trays. Adjustable Tray Height adjustment.
- Unit Mounted on castor wheels with front lock arrangement.
- Microprocessor based PID temp. controller with auto tune facility for precise control of temperature
- Temp. Sensor : PT- 100
- Recorder data bank to store and print set values , process values , date and time of master controllers with variable print time intervals ( Optional)
- PC Interface communication card with RS 485 for temperature and humidity control system ( Hardware only) ( optional)
- Electrical overload compressor cutoff.
- Time delay for compressor switch on.
- Electrical short circuit breaker.
- Room temperature around machine preferably at 25 degree C.
- Stabilised input voltage of 230V Ac, 50 Hz, 20 Amps.
- Water drain line with ½” Nozzle to be provided at floor level.
- 21 CFR Part 11 compliant software with audit trial ( who did what and when is recorded)
- Multilevel Passwords.
- Data storage device has online and offline capabilities.
- Multi chamber data acquisition on single software.
- Tabular and graphical report, alarm deviation report.
- Mean Kinetic temperature report and alarm deviation report.
- Audit trial report.
- Attractive reports and graphs.
- Alarm report.
- Time synchronisation.
Ordering Information:
Upto -20 degree C
| MODEL NO. | CAPACITY | DIMENSION IN CMS | SHELVES | WT IN KG | POWER | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard | GMP | Cu. Ft | Litres | Chamber | Over All | Unit | Packed in wooden case | VAC Hz | Watts | |
| HAMCO47SH -3 (-20c) | HAMCO47 GH-3 (-20c) | 3 | 90 | 45x45x45 | 60x95x110 | 2 | 110 | 165 | 230,50 | 1500 |
| HAMCO47 SH-4 (-20c) | HAMCO47 GH-3 (-20c) | 4 | 120 | 45x45x60 | 60x95x125 | 2 | 150 | 225 | 230,50 | 2000 |
| HAMCO47 SH-8 (-20c) | HAMCO47 GH-8 (-20c) | 8 | 200 | 60x60x60 | 80x110x125 | 2 | 220 | 300 | 230,50 | 2500 |
| HAMCO47 SH-12(-20c) | HAMCO47 GH-12(-20c) | 12 | 324 | 60x60x90 | 80x110x155 | 3 | 230 | 320 | 230,50 | 2500 |
| HAMCO47 SH-16(-20c) | HAMCO47 GH-16(-20c) | 16 | 450 | 60x60x125 | 80x130x175 | 4 | 340 | 430 | 230,50 | 4000 |
| HAMCO47 SH-21(-20c) | HAMCO47 GH-21(-20c) | 21 | 600 | 60x80x125 | 80x130x195 | 5 | 365 | 465 | 230,50 | 4000 |
| HAMCO47 SH-28(-20c) | HAMCO47 GH-28(-20c) | 28 | 800 | 80x80x125 | 100x130x210 | 5 | 390 | 500 | 230,50 | 4500 |
| HAMCO47 SH-34(-20c) | HAMCO47 GH-34(-20c) | 34 | 1000 | 80x80x155 | 100x130x220 | 5 | 430 | 525 | 230,50 | 4500 |
Upto -40 degree C
| MODEL NO. | CAPACITY | DIMENSION IN CMS | SHELVES | WT IN KG | POWER | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard | GMP | Cu. Ft | Litres | Chamber | Over All | Unit | Packed in wooden case | VAC Hz | Watts | |
| HAMCO47 SH -3 (-40c) | HAMCO47 GH-3 (-40c) | 3 | 90 | 45x45x45 | 60x95x110 | 2 | 110 | 165 | 230,50 | 1500 |
| HAMCO47 SH-4 (-40c) | HAMCO47 GH-3 (-40c) | 4 | 120 | 45x45x60 | 60x95x125 | 2 | 150 | 225 | 230,50 | 2000 |
| HAMCO47 SH-8 (-40c) | HAMCO47 GH-8 (-40c) | 8 | 200 | 60x60x60 | 80x110x125 | 2 | 220 | 300 | 230,50 | 2500 |
| HAMCO47 SH-12(-40c) | HAMCO47 GH-12(-40c) | 12 | 324 | 60x60x90 | 80x110x155 | 3 | 230 | 320 | 230,50 | 2500 |
| HAMCO47 SH-16(-40c) | HAMCO47 GH-16(-40c) | 16 | 450 | 60x60x125 | 80x130x175 | 4 | 340 | 430 | 230,50 | 4000 |
| HAMCO47 SH-21(-40c) | HAMCO47 GH-21(-40c) | 21 | 600 | 60x80x125 | 80x130x195 | 5 | 365 | 465 | 230,50 | 4000 |
| HAMCO47 SH-28(-40c) | HAMCO47 GH-28(-40c) | 28 | 800 | 80x80x125 | 100x130x210 | 5 | 390 | 500 | 230,50 | 4500 |
| HAMCO47 SH-34(-40c) | HAMCO47 GH-34(-40c) | 34 | 1000 | 80x80x155 | 100x130x220 | 5 | 430 | 525 | 230,50 | 4500 |
Upto -80 degree C
| MODEL NO. | CAPACITY | DIMENSION IN CMS | SHELVES | WT IN KG | POWER | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard | GMP | Cu. Ft | Litres | Chamber | Over All | Unit | Packed in wooden case | VAC Hz | Watts | |
| HAMCO47 SH -3 (-80c) | HAMCO47 GH-3 (-80c) | 3 | 90 | 45x45x45 | 60x95x110 | 2 | 110 | 185 | 230,50 | 1500 |
| HAMCO47 SH-4 (-80c) | HAMCO47 GH-3 (-80c) | 4 | 120 | 45x45x60 | 60x95x125 | 2 | 150 | 245 | 230,50 | 2000 |
| HAMCO47 SH-8 (-80c) | HAMCO47 GH-8 (-80c) | 8 | 200 | 60x60x60 | 80x110x125 | 2 | 220 | 330 | 230,50 | 2500 |
| HAMCO47 SH-12(-80c) | HAMCO47 GH-12(-80c) | 12 | 324 | 60x60x90 | 80x110x155 | 3 | 230 | 350 | 230,50 | 2500 |
| HAMCO47 SH-16(-80c) | HAMCO47 GH-16(-80c) | 16 | 450 | 60x60x125 | 80x130x175 | 4 | 340 | 460 | 230,50 | 4000 |
| HAMCO47 SH-21(-80c) | HAMCO47 GH-21(-80c) | 21 | 600 | 60x80x125 | 80x130x195 | 5 | 365 | 495 | 230,50 | 4000 |
| HAMCO47 SH-28(-80c) | HAMCO47 GH-28(-80c) | 28 | 800 | 80x80x125 | 100x130x210 | 5 | 390 | 530 | 230,50 | 4500 |
| HAMCO47 SH-34(-80c) | HAMCO47 GH-34(-80c) | 34 | 1000 | 80x80x155 | 100x130x220 | 5 | 430 | 555 | 230,50 | 4500 |
